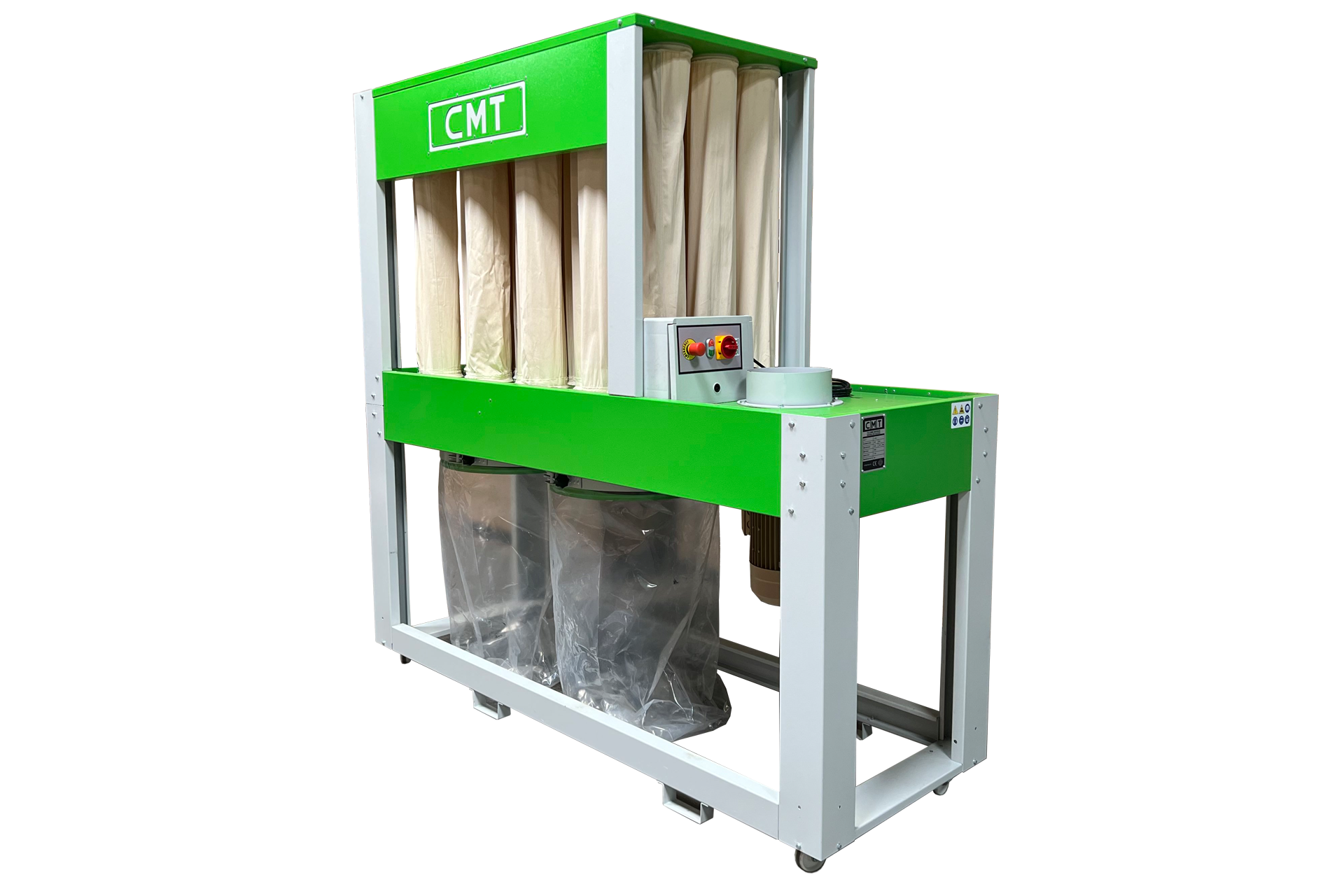

DUST COLLECTOR

E-4000

The perfect starting point

E Series extractors are designed for filtering chips and fine sawdust in carpentry and furniture industries, the multiple filter set up gives greater filtration area. The heavy fan and blades are min 3 mm according to fan size. Body sheet thickness is 1.2 mm. The fan is dynamically and statically balanced.

Features

• Mobile dust collector with flow capacity of 2500 CFM.
• Body sheet thickness is 1.2 mm. The propeller and blades are at least 3 mm according to the fan size. The propeller is dynamically and statically balanced.
• Painted with two colors electrostatic powder paint.
• In IP55 standards, IE3 high efficiency motor is used. There is a part separator that protects the propeller against balancing and reduces the risk of fire.
• We put an end to propeller breakages with the part separator feature.
• The part separator prevents parts larger than 25x25mm from entering the propeller. This protects the propeller against balancing and ensures it to last longer.
• Preventing parts of 25x25mm and above from entering the propeller reduces the risk of fire.
• Metal propeller is used in all product groups.
• All products are produced in CE standards.

Technical Data
