EDGEBANDING MACHINES

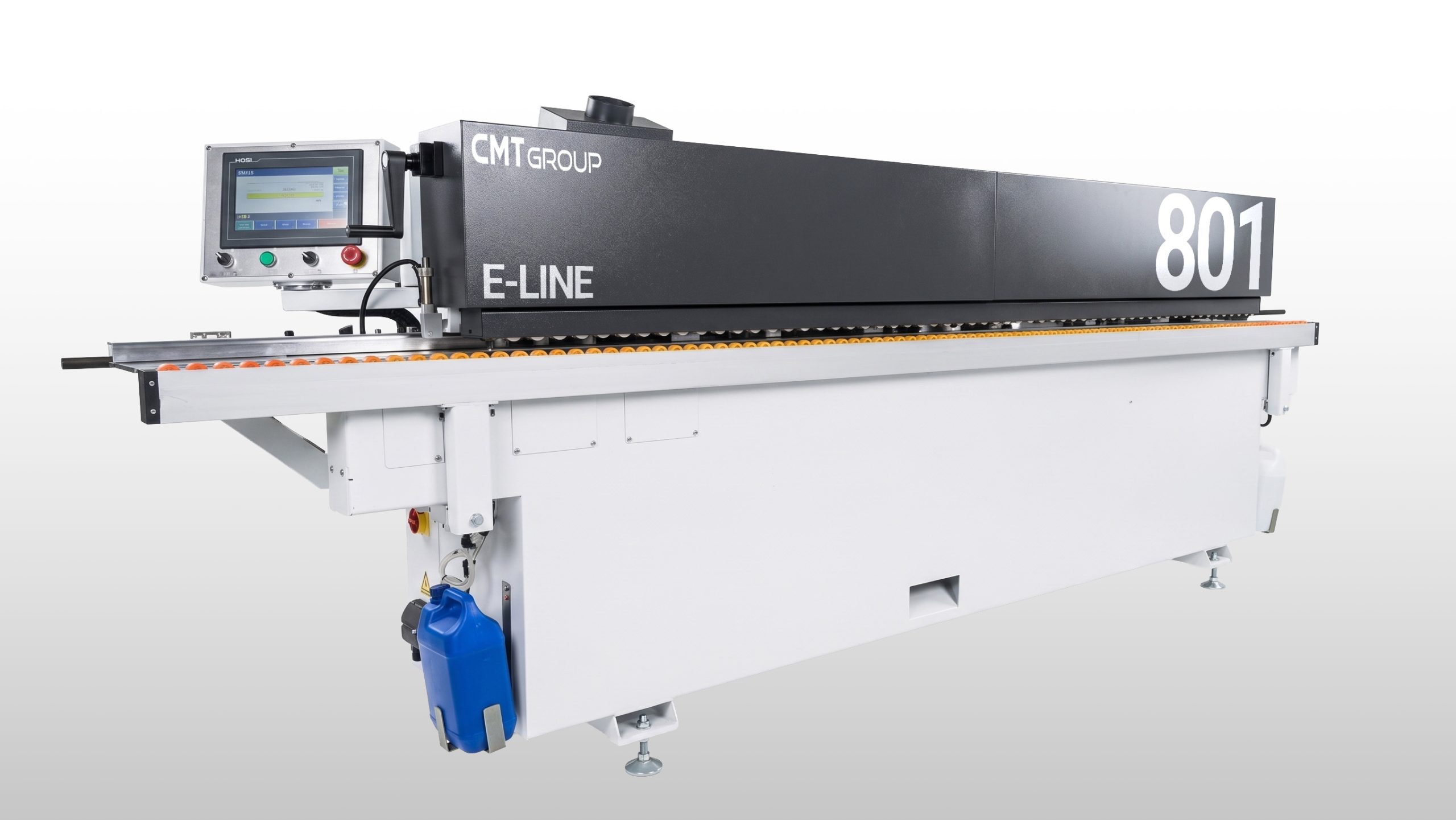

E-LINE 801
The perfect starting point
Industrial edge banding solutions for high and medium capacity facilities. It is a high capacity edge banding (PVC) machine with pallet and automatic band transition system. All the necessary settings for the banding process are done automatically with the touch panel integrated into the machine. It is an easy to use, maintenance-free, long-lasting machine.
Features
• 8 ” touch control panel

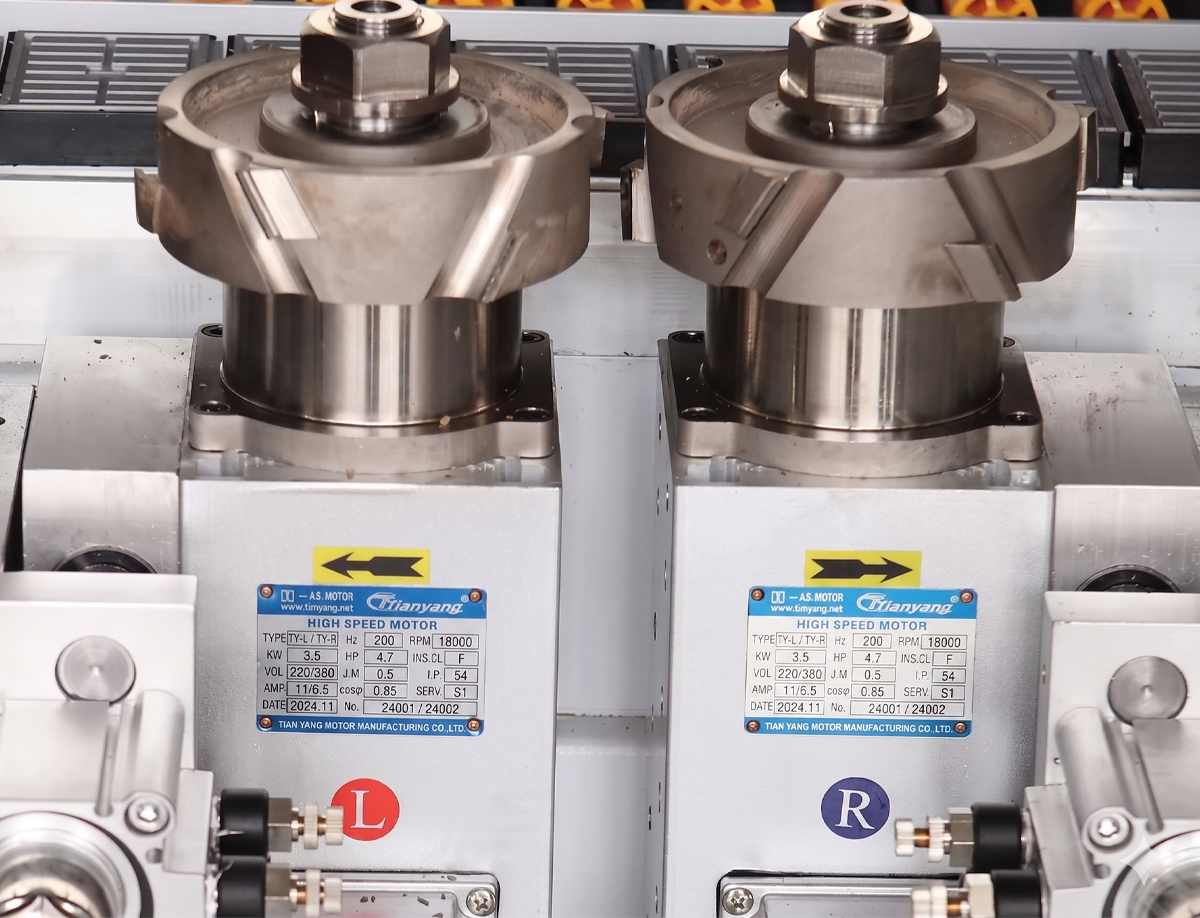

• Pre milling unit

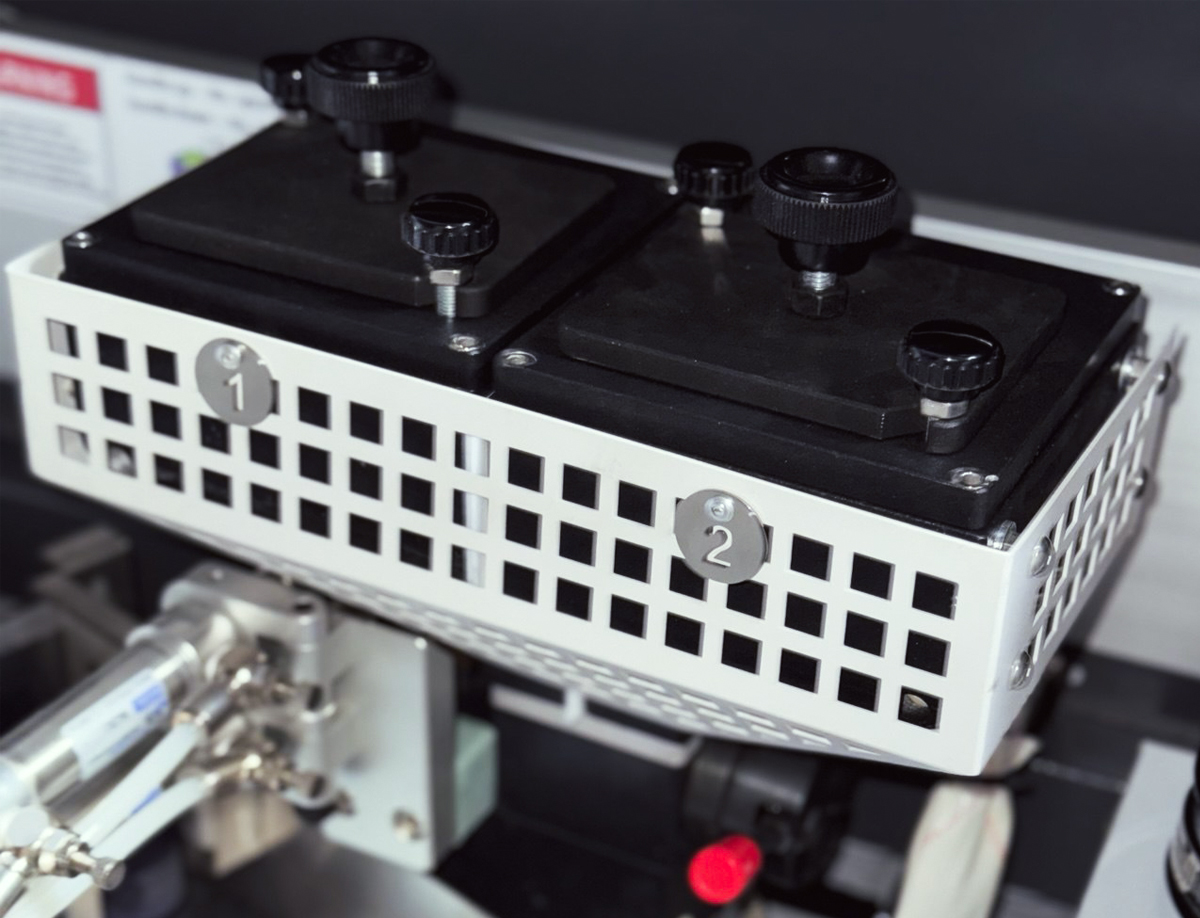

• Gluing unit with automatic glue feeding (optional)
• Scissors and Pressing unit

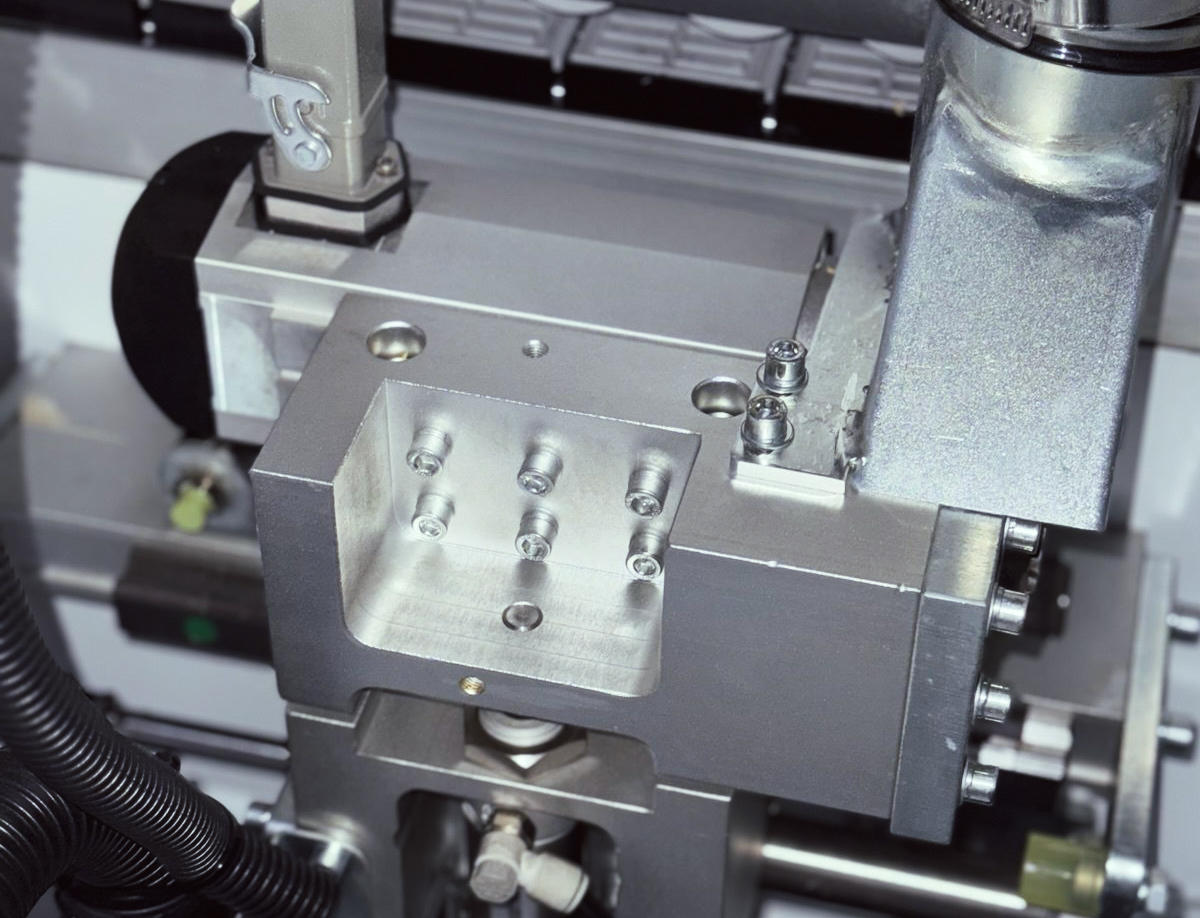

• Head-End cutting unit Up and Down milling unit

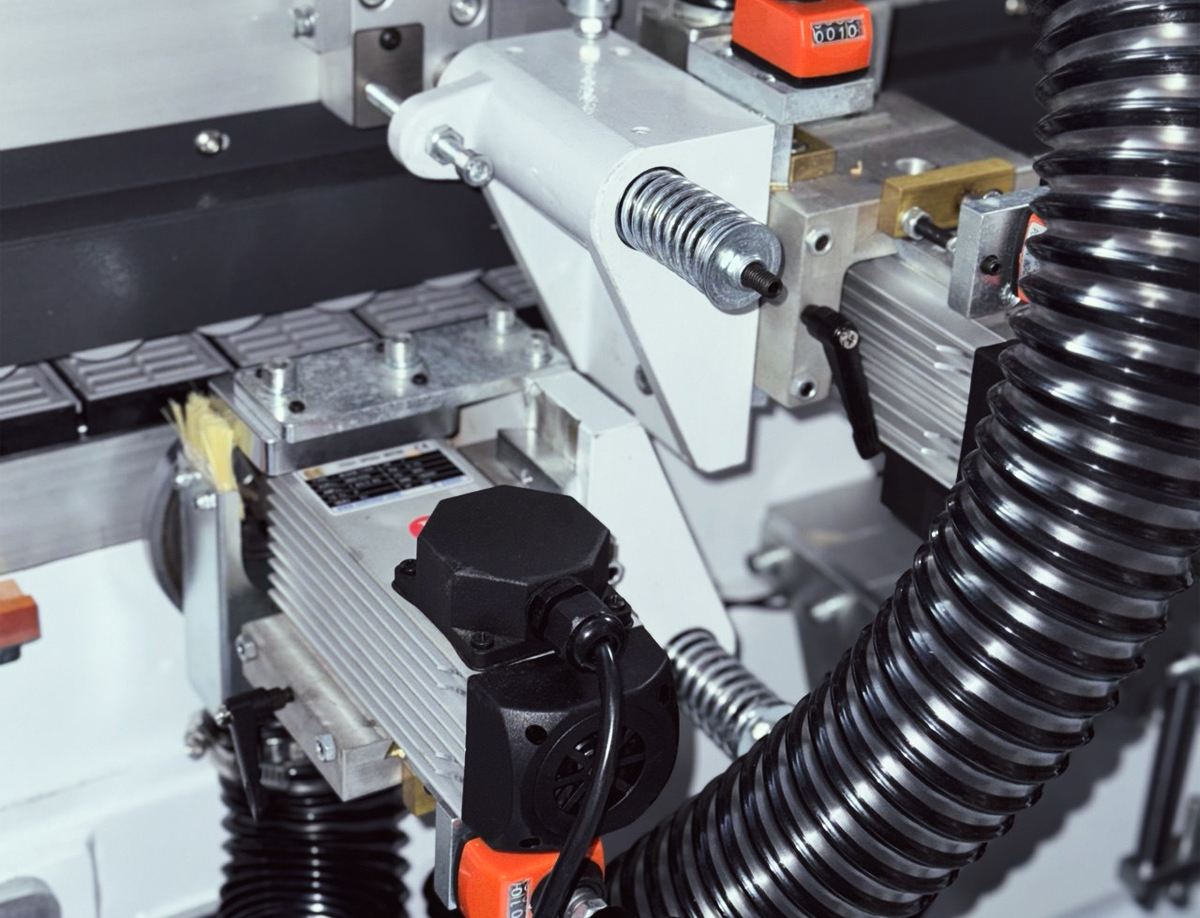

• Trimming unit

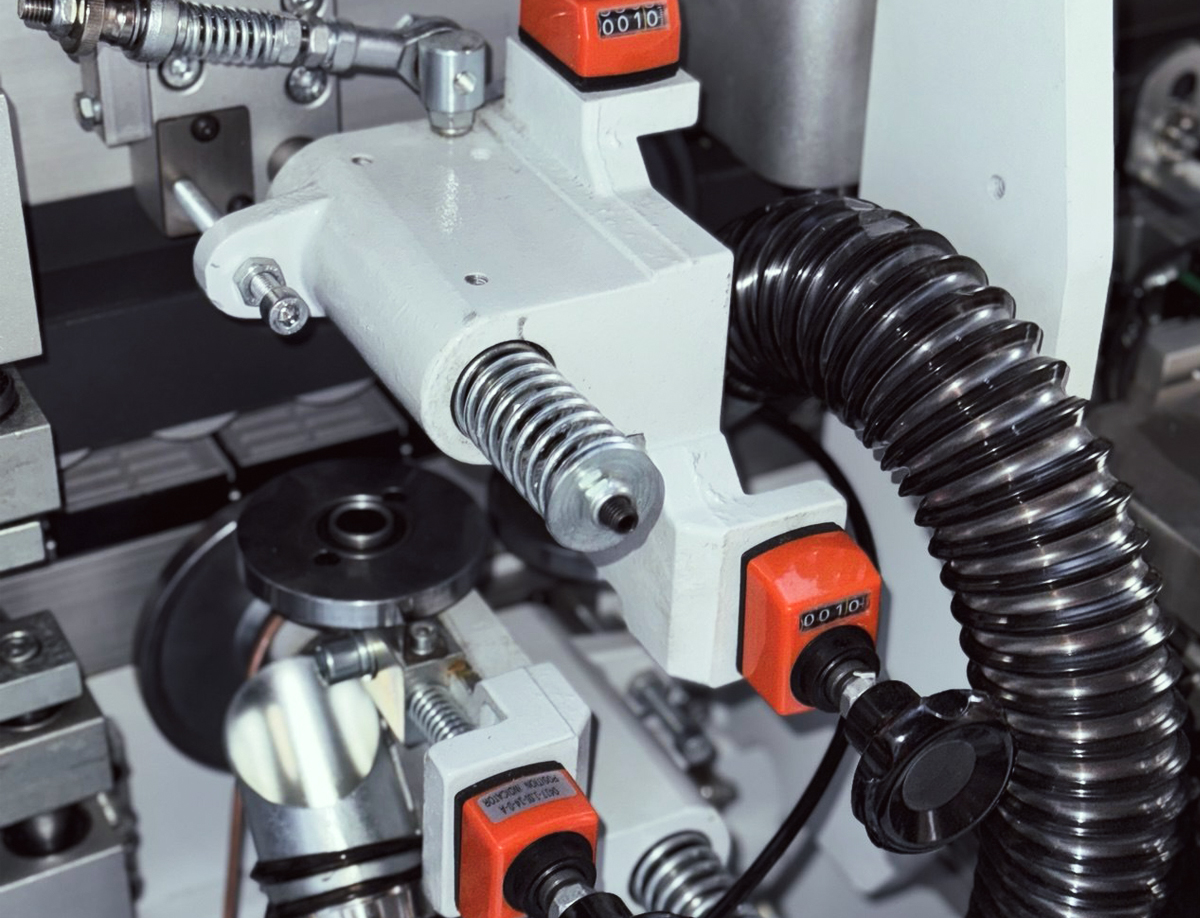

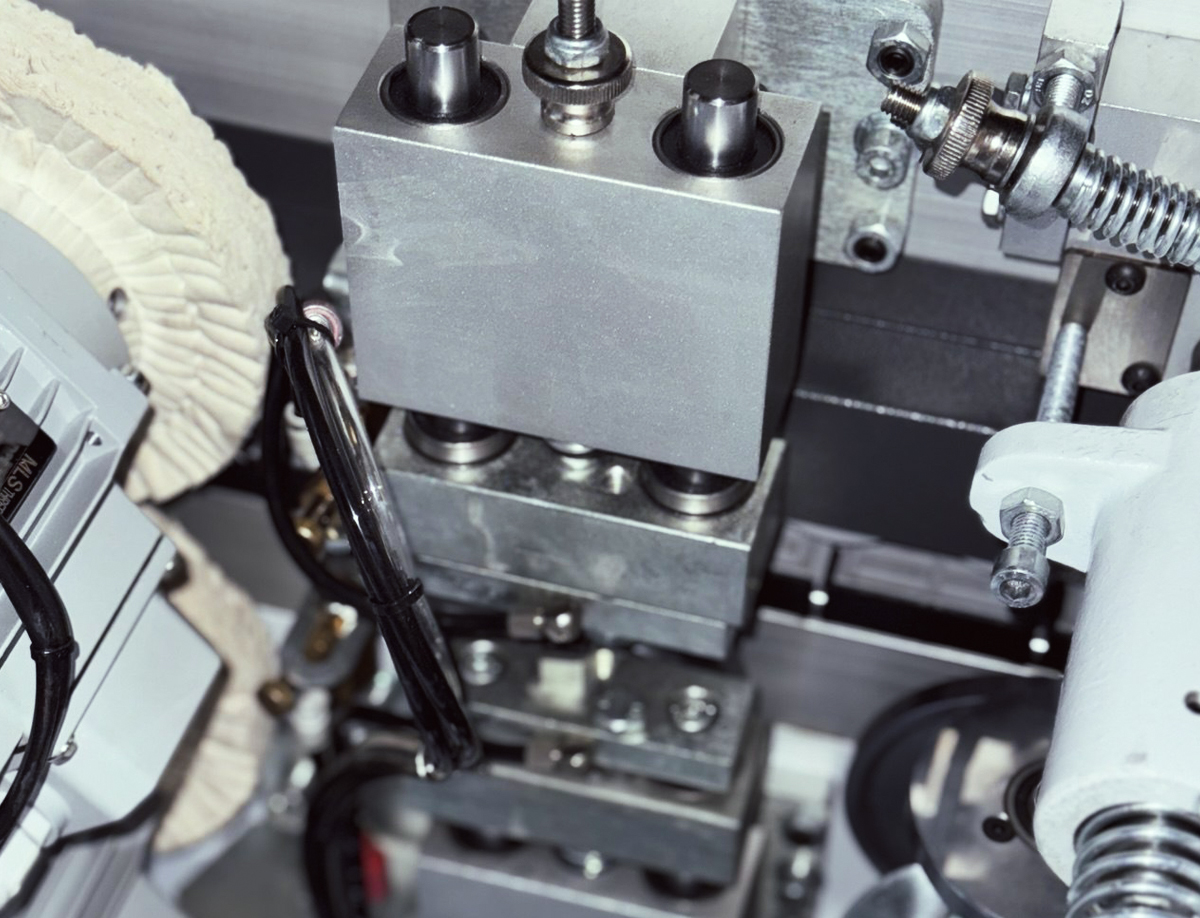

• Flat and Radius scraping unit

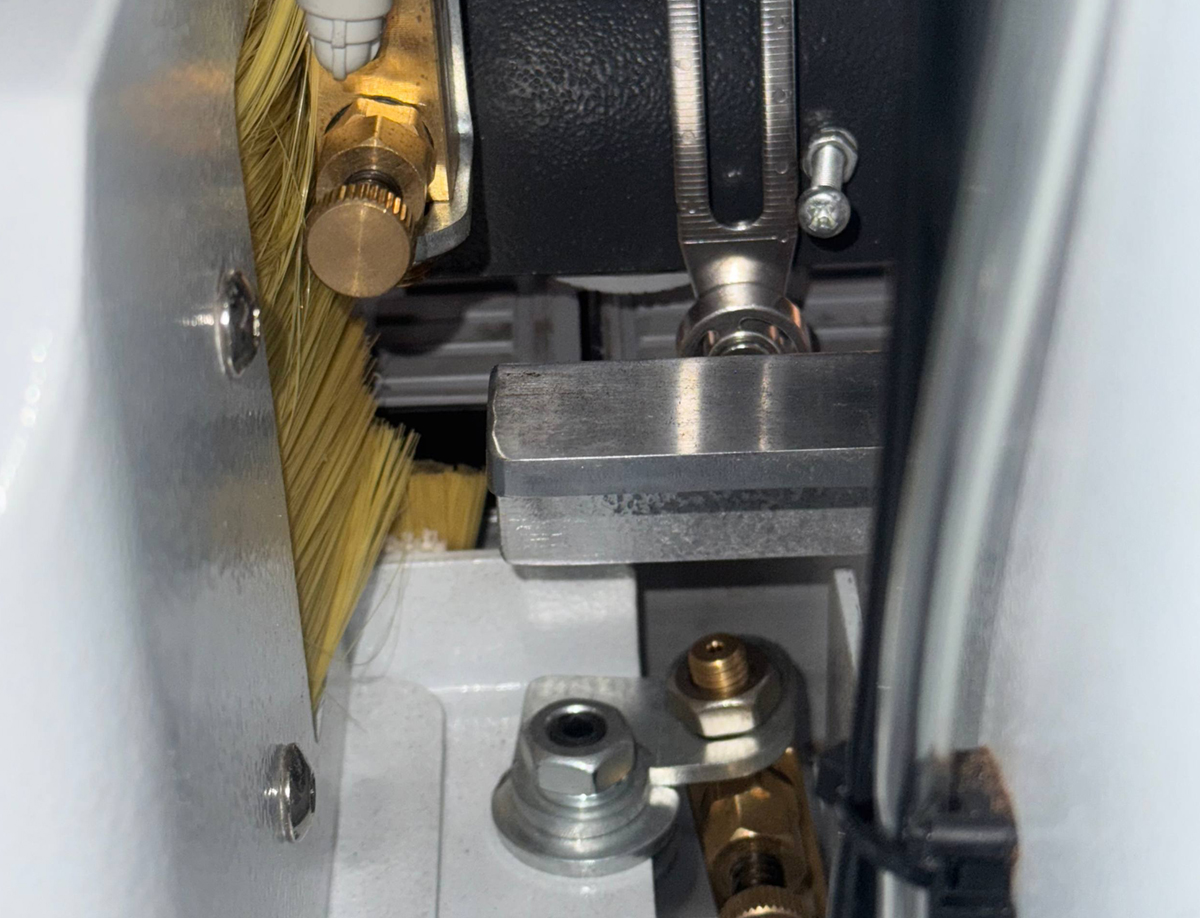

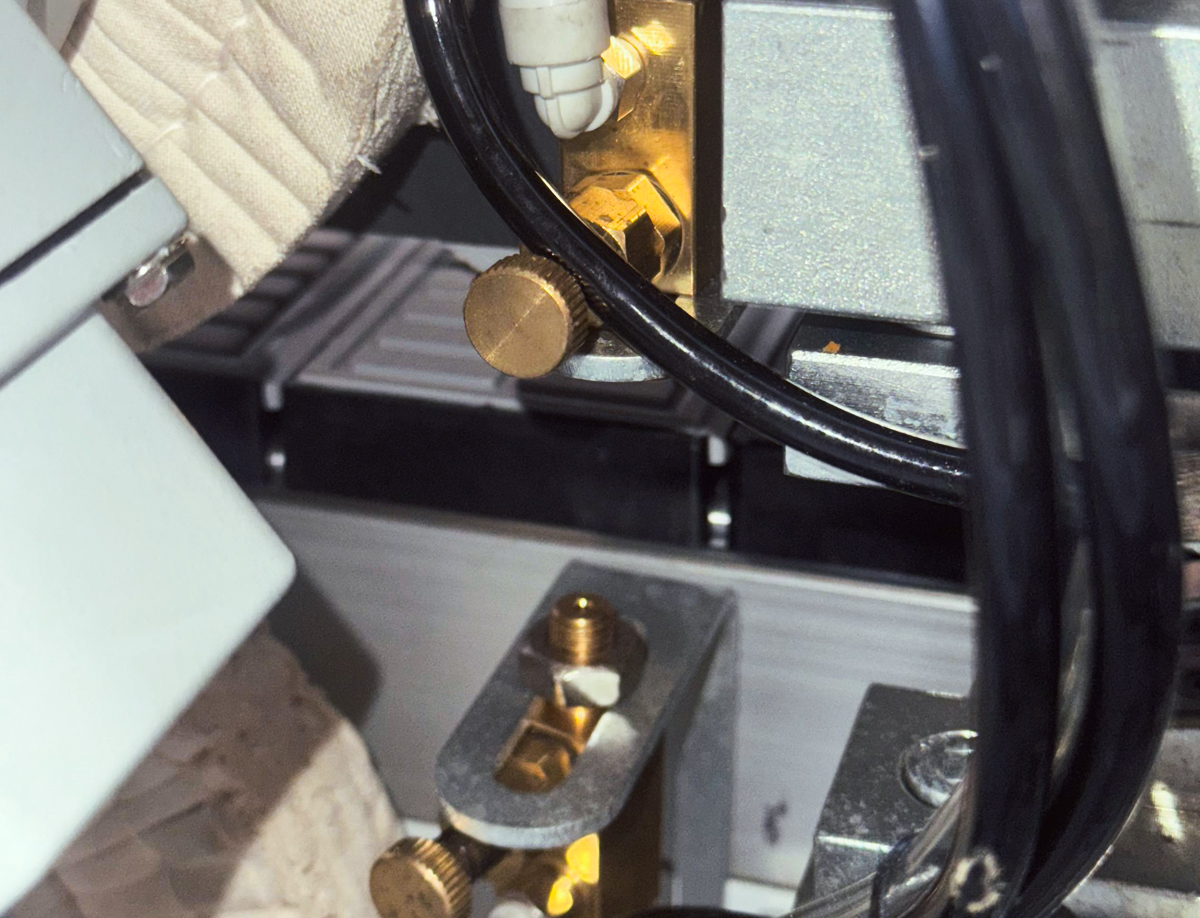

• Cleaning and glue removal with fluid spray

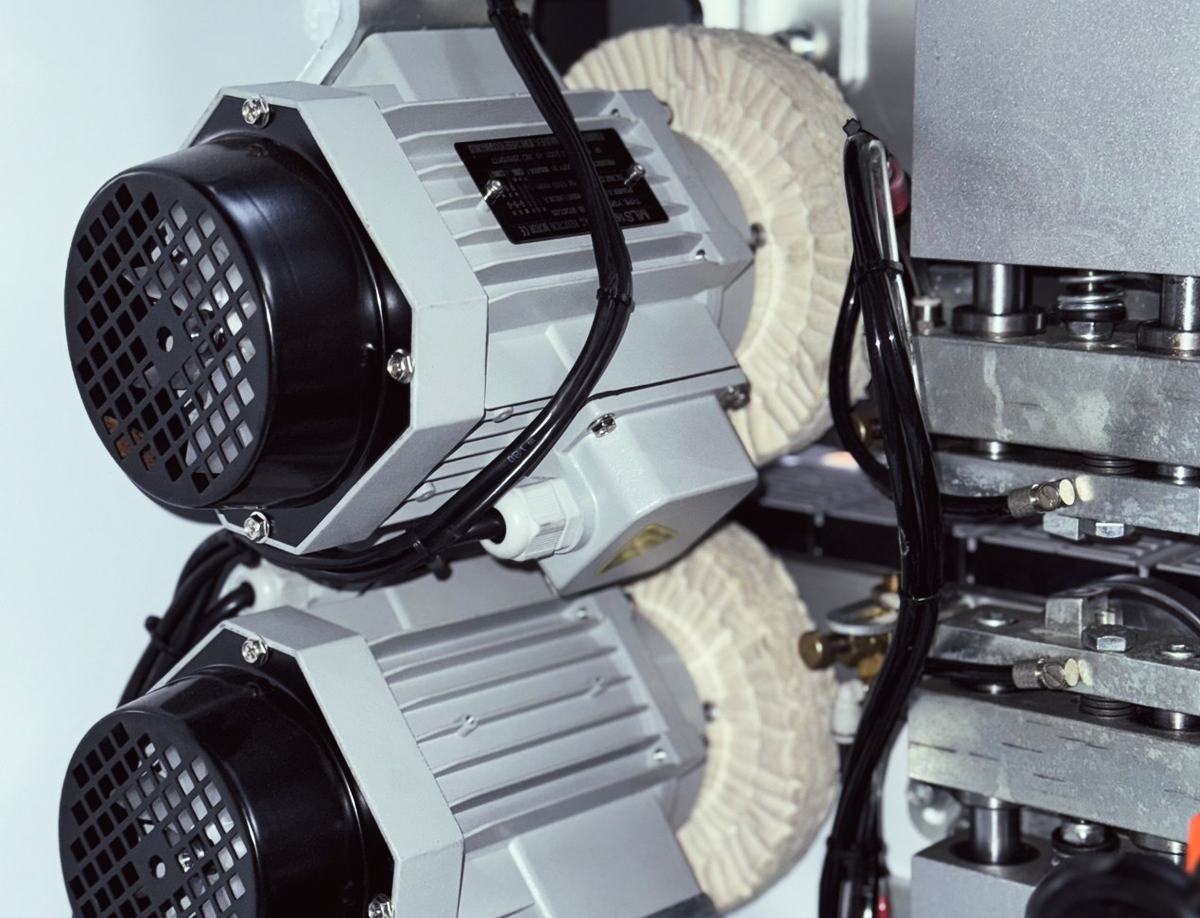

• polishing unit
• Hot air blower unit
Images
Technical Data
| Electricity | 380-400 V , 60 Hz , 18A |
|---|---|
| Total electrical power | 12 Kw |
| Tape thickness | 0.40 mm - 3 mm |
| Tape width | 14 mm – 54 mm |
| Work piece thickness | 10 - 46 mm |
| Work piece width min | 70 mm |
| Work piece length min | 120 mm |
| Working speed | 15 – 20 m /min |
| working height | 910 mm |
| Air pressure | 6 Bar |
| Pre milling motors power and speed | 2 x 1.5 Kw 12000 rpm |
| Head-end cutting motors power and speed | 2 x 0.37 Kw 12000 rpm |
| Bottom-Top milling motors power and speed | 2 x 0.37 Kw 12000 rpm |
| Trimming motors power and speed | 3 x 0.37 Kw 12000 rpm |
| Grooving Saw motor | 3.7 Kw 9000 rpm |
| Polishing motors power and speed | 2 x 0.55 Kw 1400 rpm |
| Dimensions of the machine L*W*H | 5380 x 1000 x 1770 mm (17.5 x 3.2 x 5.8 ) Ft |
| Weight | 3000 Kg |
| Trim milling motors power and speed | 0.55 Kw 12000 rpm |
| Polishing motors power and speed | 0.25 Kw 2840 rpm |
| Dust extraction motor power | 0.55 Kw 2840 rpm |
| Track chain motor power and speed | 1.1 Kw 26 rpm |
| Dimensions of the machine L*W*H | 12.8 ft x 2.2 ft x 5 ft |
| Weight | 830 Kg |
